WS120 Wall Scanner Multifunctional Wall Detector PVC Water Pipe Metal Wood AC Cable Live Wire Finder Scanner Diagnostic-tool
Product Description:

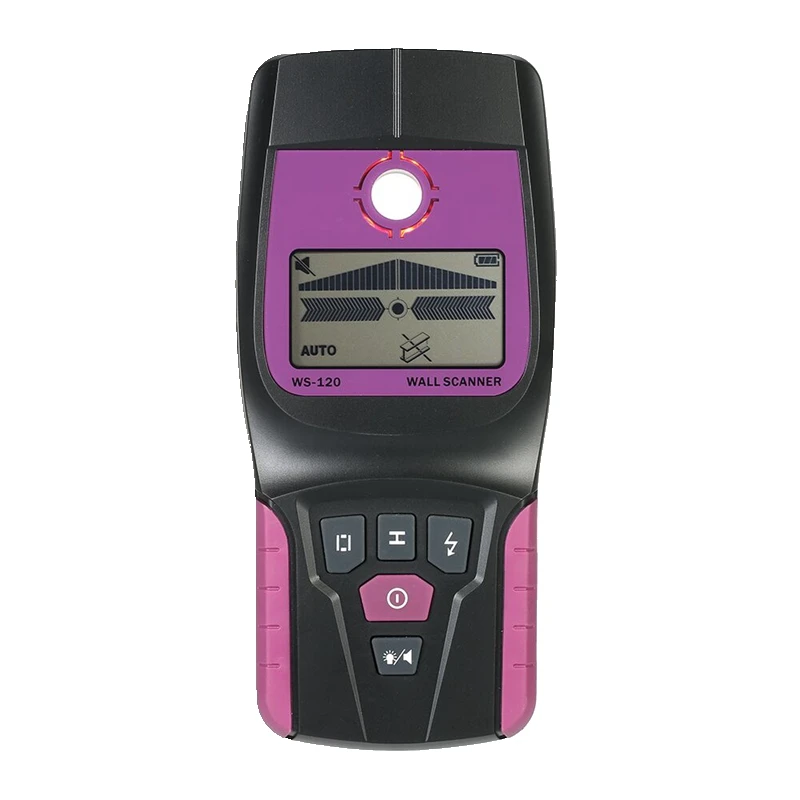

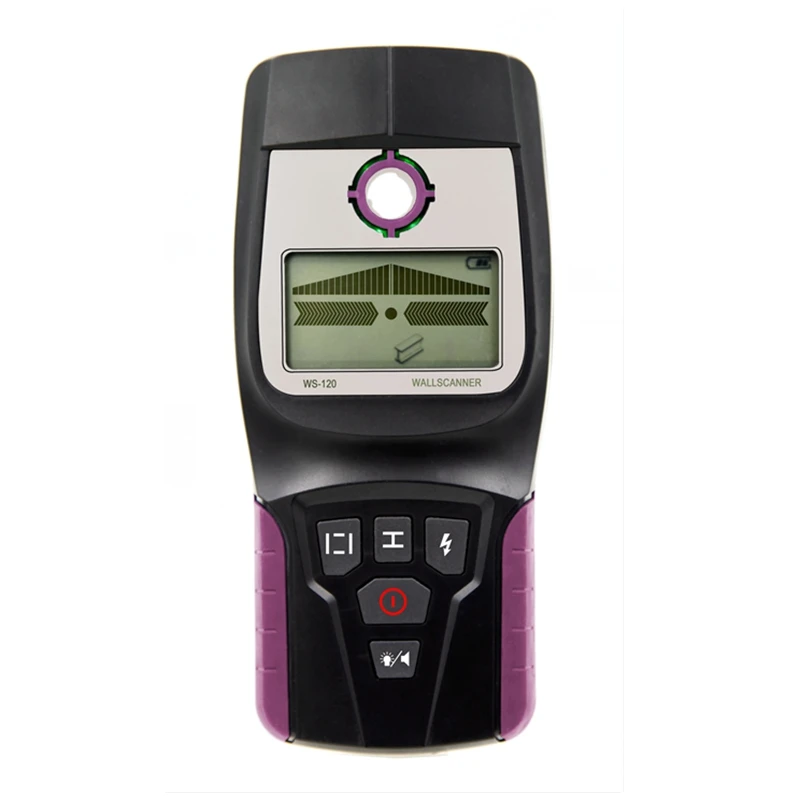

WS-120 Wall scanner
Application:
WS-120 is a handhold wall scanner for quick detection of magnetic metals in wall, rooftopand floor, such as reinforcing steels, iron pipes, and nonmagnetic metals such as aluminumpipes, copper pipes, and nonmetal materials such as beams, PVC water pipes, as well aselectrified objects as live wires.
Features:
-Perfect for detecting metal, wood and AC cable hidden in the wall.
-Indicates the detecting results by Light and Beep
-Detect AC cable with voltage higher than 110V, 50-60Hz, the sensibility may be weak whenthe cable is grounded.
-High accuracy, with a maximum detection depth of 110mm.
Specifications:

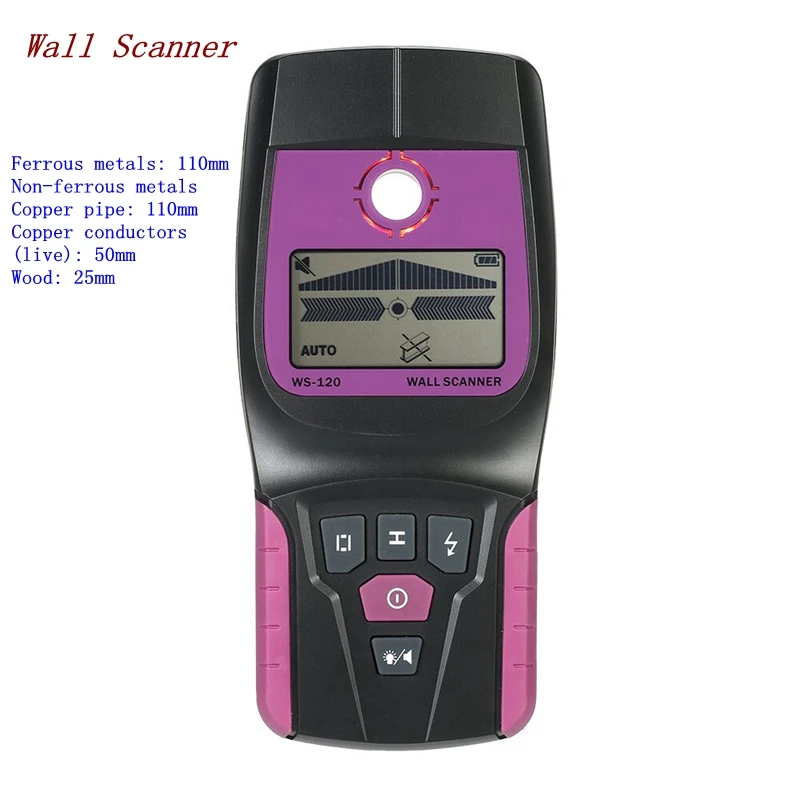

Detect Ferrous metal and Non-ferrous metal AC live wires, wood
Maximum scanning depth: 110mm
Ferrous metals: 110mm
Non-ferrous metals (copper pipe): 110mm
Copper conductors (live): 50mm
Wood&PVC Tube: 25mm
Automatic switch-off after approx: 5min
Operating Condition :
Temperature: -10 to 50C
Humidity: <75%
Altitude: <2000M
Storage temperature: -20C to 70C
General Information:

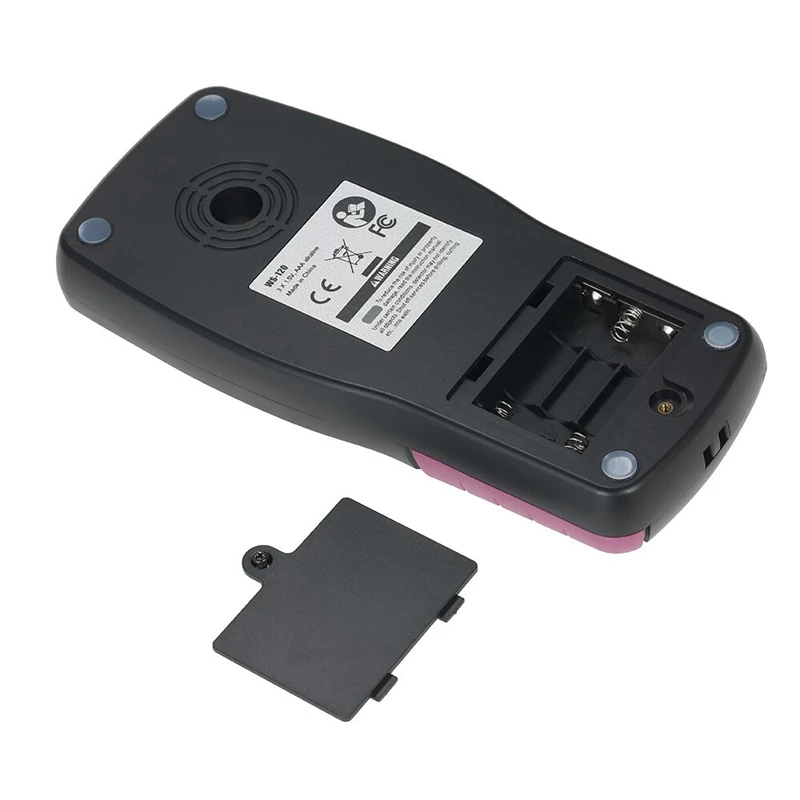

Battery type: 3 * 1.5V, AAA alkaline(not included)
Dimensions: 185*85*33mm
Weight: 180g
Package List:
1 * Wall Detector
1 * Carry Bag
1 * User Manual(English)
