Price: -

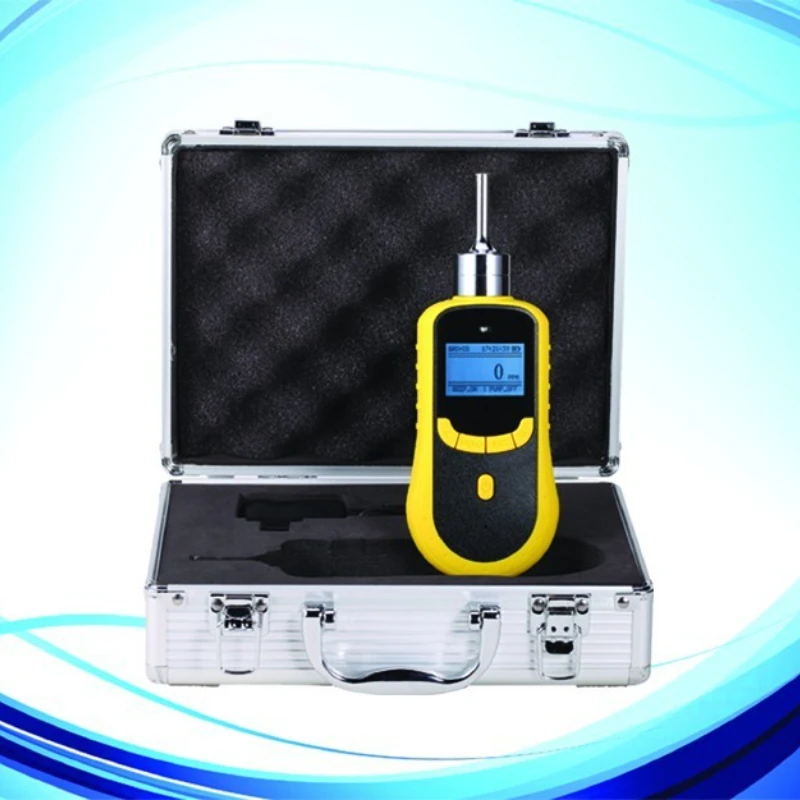

C6H6 Benzene toxic gas detector
Characteristics & Functions
1. LCD dot matrix display, the gas type, unit, concentration, local time, temperature and max measure value (optional) can be showed on the screen.
2. Support Chinese and English operation, easy to shift.
3. The gas concentration unit PPM and mg/m3 can be shifted quickly.
4. Explosion-proof certification, explosion-proof grade: ExiaⅡCT4.
5. Monitor the C6H6 benzene gas concentration in environment and enclosed space and alarm.
6. With Self-calibration and zero calibration functions, makes the detection more accurate and reliable.
7. One press to restore factory setting, free from the bother of mis-operation.
8. With temperature and pressure compensation, to realize gas concentration compensation under conditions of different temperatures or pressures.
9. Two stages alarm with sound and light, alarm point is settable.
10. Rechargeable lithium polymer battery of large capacity.
Specification
|
Gas Detected |
Benzene/C6H6 |
||
|
Detection principle |
PID |
||
|
Sampling Method |
Pumping suction, flow rate can up to 1L/min, ten grades of pumping suction for selection. |
||
|
Measure Range |
0-1ppm, 0-5ppm, 0-10ppm, 0-20ppm, 0-50ppm, 0-100ppm, 0-200ppm, 0-500ppm, 0-1000ppm, 0-3000ppm, 0-6000ppm |
||
|
Resolution |
0.001ppm(0-1ppm), 0.01ppm(below 0-100ppm), 0.1ppm(0-200ppm, 0-500ppm), 1ppm(above 0-1000ppm) |
||
|
Precision |
≤± 2% F.S. |
||
|
Signal Output |
High-speed data transmission by USB, available for data downloading and printing (optional) |
||
|
Response Time |
≤10S |
Recovery Time |
≤10S |
|
Repeatability |
≤±1% |
Linearity error |
≤±1% |
|
Zero shift |
≤±1%(F.S/year) |
Display |
LCD dot matrix display |
|
Operating language |
Chinese/English |
Gas unit |
Units are switchable |
|
Temperature |
-40℃~70℃ |
Humidity |
0-95%RH |
|
Explosion-Proof |
ExiaⅡCT4 |
Degree of protection |
IP66 |
|
Alarm mode |
Sound, light, vibration |
Operating time |
100h(pump off) |
|
Dimensions |
205*75*32mm |
Weight |
300g |
